InnoLIFT models and technical details

Standard models - faster delivery time

A green and black InnoLIFT machine.

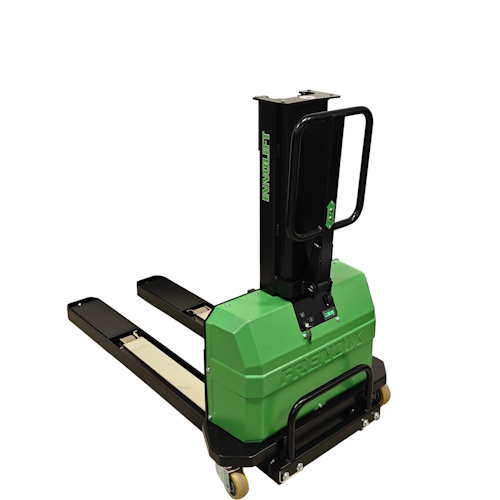

IM600.800

Power: Battery
Capacity: 600 kg
Lifting height: 800 mm
Loading height: 700 mm
Own weight: 178 kg

Vehicle examples*
Box body vans such as: VW Transporter, MB Vito, MB Sprinter and Ford Custom roof height H1 and H2

A green and black InnoLIFT machine.

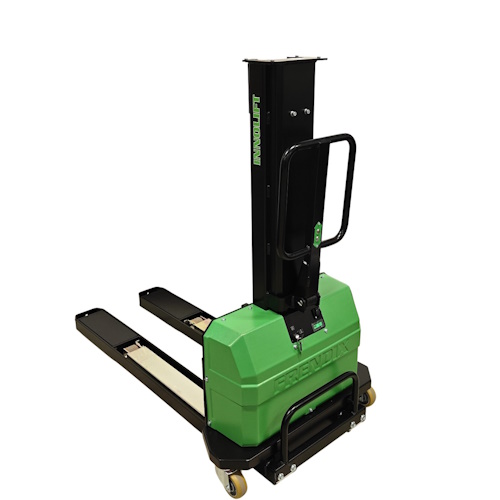

IL600.1000

Power: Battery
Capacity: 600 kg
Lifting height: 1000 mm
Loading height: 900 mm
Own weight: 182 kg

Vehicle examples*
Box body vans such as: MB Sprinter and Ford Custom roof height H2

A green and black InnoLIFT machine.

IXL500.1250

Power: Battery
Capacity: 500 kg
Lifting height: 1000 mm
Loading height: 900 mm
Own weight: 182 kg

Vehicle examples*
Transporter roof height H2 as well as transporter with flatbed or box body

Special models - IS model is the smallest in size, IXXL model lifts the highest and the IV model is opereted manually with a winch

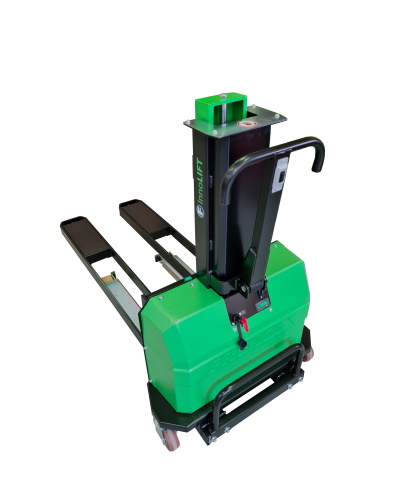

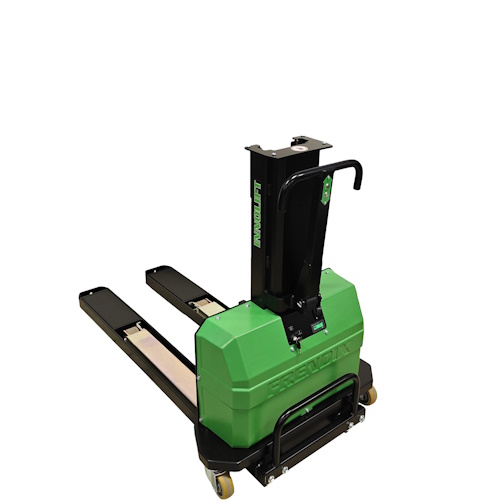

IS600.700

Power: Battery
Capacity: 600 kg
Lifting height: 700 mm
Loading height: 600 mm
Own weight: 174 kg

Vehicle examples*
Maxi vans such as VW Caddy, Opel Combo, MB Citan

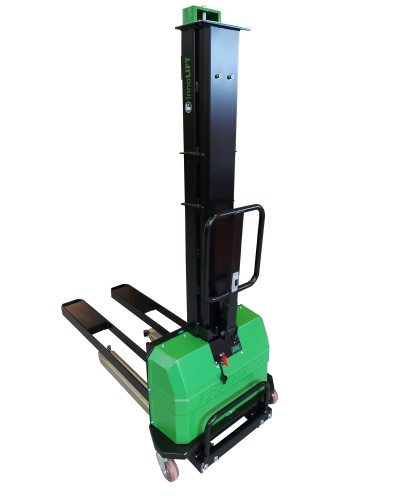

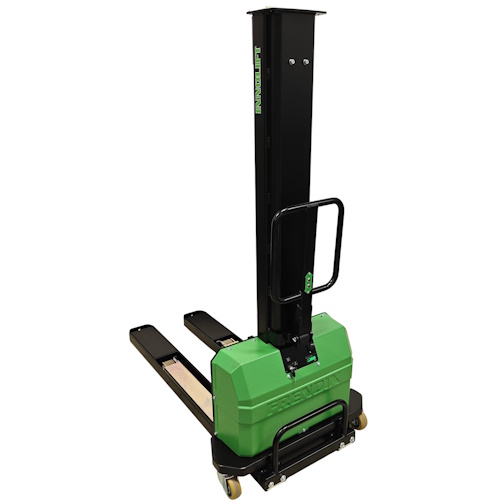

IXXL400.1400

Power: Battery
Capacity: 400 kg
Lifting height: 1400 mm
Loading height: 1300 mm
Own weight: 195 kg

Vehicle examples*
Transporters with flatbeds or box bodies as well as large commercial vehicles over 7.5 t

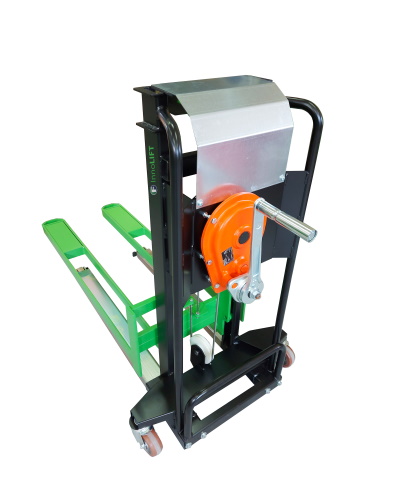

IV300.800

Power: Manual
Capacity: 300 kg
Lifting height: 800 mm
Loading height: 700 mm
Own weight: 103 kg

Vehicle examples*
Box body vans such as: VW Transporter, MB Vito, MB Sprinter and Ford Custom roof height H1 and H2

Heavy Duty and Straddle - IL ja IXL models for heavy cargos and the US model for closed pallets

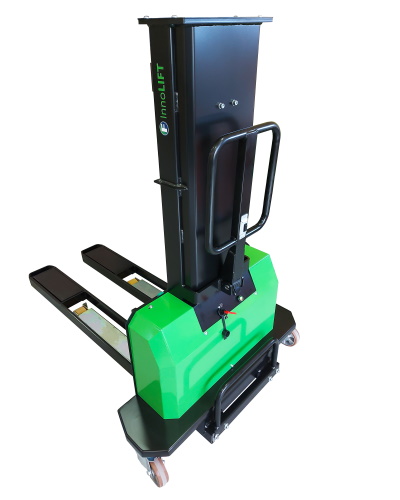

IL1000.1000

Power: Battery
Capacity: 1000 kg
Lifting height: 1000 mm
Loading height: 900 mm
Own weight: 257 kg

Vehicle examples*
Transporter / 5t with box body

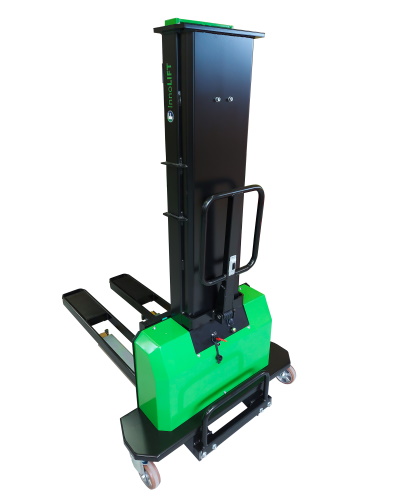

IXL1000.1250

Power: Battery
Capacity: 1000 kg
Lifting height: 1250 mm
Loading height: 1150 mm
Own weight: 265 kg

Vehicle examples*
Transporter / 5t with box body and transporter with flatbed or box body.

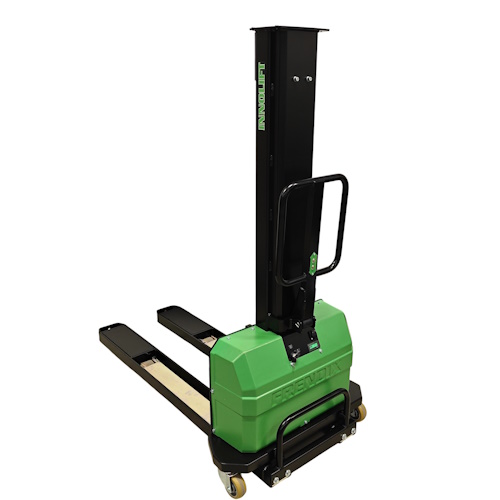

IXL550.1250_US_InnoLIFT

IXXL500.1400.US

Power: Battery
Capacity: 500 kg ( 1100 lbs )
Lifting height: 1400 mm ( 55,1” )
Loading height: 1300 mm ( 51,1” )
Own weight: 262 kg ( 580 lbs )

Vehicle examples*
For loading closed frame and industrial pallets

Self Propelled Models with a Drive Motor

A green and black InnoLIFT machine.

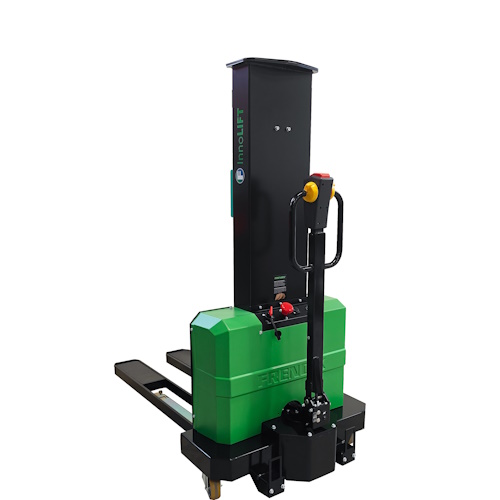

EL1000.1000

Power: Electric
Capacity: 1000 kg ( 2200 lb )
Lifting height: 1000 mm ( 39,37” )
Loading height: 900 mm ( 35,43” )
Own weight: 320 kg ( 705 lb )

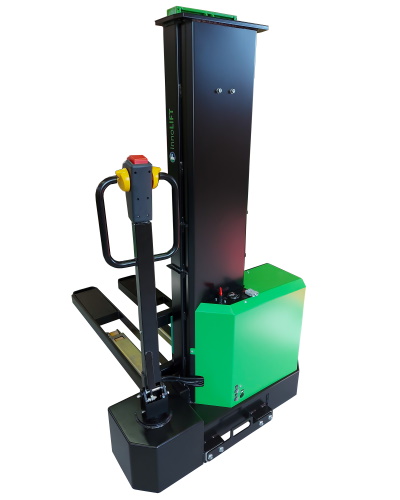

EXL1000.1250

Power: Electric
Capacity: 1000 kg ( 2200 lb )
Lifting height: 1250 mm ( 49,21” )
Loading height: 1150 mm ( 45,27” )
Own weight: 330 kg ( 728 lb )
